helper_dataset.py

+import torch
+from torch.utils.data import sampler
+from torchvision import datasets
+from torch.utils.data import DataLoader
+from torch.utils.data import SubsetRandomSampler
+from torchvision import transforms
+
+
+class UnNormalize(object):
+    def __init__(self, mean, std):
+        self.mean = mean
+        self.std = std
+
+    def __call__(self, tensor):
+        """
+        Parameters:
+        ------------
+        tensor (Tensor): Tensor image of size (C, H, W) to be normalized.
+
+        Returns:
+        ------------
+        Tensor: Normalized image.
+        """
+        for t, m, s in zip(tensor, self.mean, self.std):
+            t.mul_(s).add_(m)
+        return tensor
+
+
+def get_dataloaders_mnist(batch_size, num_workers=0,
+                          validation_fraction=None,
+                          train_transforms=None,
+                          test_transforms=None):
+
+    if train_transforms is None:
+        train_transforms = transforms.ToTensor()
+
+    if test_transforms is None:
+        test_transforms = transforms.ToTensor()
+
+    train_dataset = datasets.MNIST(root='data',
+                                   train=True,
+                                   transform=train_transforms,
+                                   download=True)
+
+    valid_dataset = datasets.MNIST(root='data',
+                                   train=True,
+                                   transform=test_transforms)
+
+    test_dataset = datasets.MNIST(root='data',
+                                  train=False,
+                                  transform=test_transforms)
+
+    if validation_fraction is not None:
+        num = int(validation_fraction * 60000)
+        train_indices = torch.arange(0, 60000 - num)
+        valid_indices = torch.arange(60000 - num, 60000)
+
+        train_sampler = SubsetRandomSampler(train_indices)
+        valid_sampler = SubsetRandomSampler(valid_indices)
+
+        valid_loader = DataLoader(dataset=valid_dataset,
+                                  batch_size=batch_size,
+                                  num_workers=num_workers,
+                                  sampler=valid_sampler)
+
+        train_loader = DataLoader(dataset=train_dataset,
+                                  batch_size=batch_size,
+                                  num_workers=num_workers,
+                                  drop_last=True,
+                                  sampler=train_sampler)
+
+    else:
+        train_loader = DataLoader(dataset=train_dataset,
+                                  batch_size=batch_size,
+                                  num_workers=num_workers,
+                                  drop_last=True,
+                                  shuffle=True)
+
+    test_loader = DataLoader(dataset=test_dataset,
+                             batch_size=batch_size,
+                             num_workers=num_workers,
+                             shuffle=False)
+
+    if validation_fraction is None:
+        return train_loader, test_loader
+    else:
+        return train_loader, valid_loader, test_loader
+
+
+def get_dataloaders_cifar10(batch_size, num_workers=0,
+                            validation_fraction=None,
+                            train_transforms=None,
+                            test_transforms=None):
+
+    if train_transforms is None:
+        train_transforms = transforms.ToTensor()
+
+    if test_transforms is None:
+        test_transforms = transforms.ToTensor()
+
+    train_dataset = datasets.CIFAR10(root='data',
+                                     train=True,
+                                     transform=train_transforms,
+                                     download=True)
+
+    valid_dataset = datasets.CIFAR10(root='data',
+                                     train=True,
+                                     transform=test_transforms)
+
+    test_dataset = datasets.CIFAR10(root='data',
+                                    train=False,
+                                    transform=test_transforms)
+
+    if validation_fraction is not None:
+        num = int(validation_fraction * 50000)
+        train_indices = torch.arange(0, 50000 - num)
+        valid_indices = torch.arange(50000 - num, 50000)
+
+        train_sampler = SubsetRandomSampler(train_indices)
+        valid_sampler = SubsetRandomSampler(valid_indices)
+
+        valid_loader = DataLoader(dataset=valid_dataset,
+                                  batch_size=batch_size,
+                                  num_workers=num_workers,
+                                  sampler=valid_sampler)
+
+        train_loader = DataLoader(dataset=train_dataset,
+                                  batch_size=batch_size,
+                                  num_workers=num_workers,
+                                  drop_last=True,
+                                  sampler=train_sampler)
+
+    else:
+        train_loader = DataLoader(dataset=train_dataset,
+                                  batch_size=batch_size,
+                                  num_workers=num_workers,
+                                  drop_last=True,
+                                  shuffle=True)
+
+    test_loader = DataLoader(dataset=test_dataset,
+                             batch_size=batch_size,
+                             num_workers=num_workers,
+                             shuffle=False)
+
+    if validation_fraction is None:
+        return train_loader, test_loader
+    else:
+        return train_loader, valid_loader, test_loader
+

helper_evaluation.py

+# imports from installed libraries
+import os
+import numpy as np
+import random
+import torch
+from distutils.version import LooseVersion as Version
+from itertools import product
+
+
+def set_all_seeds(seed):
+    os.environ["PL_GLOBAL_SEED"] = str(seed)
+    random.seed(seed)
+    np.random.seed(seed)
+    torch.manual_seed(seed)
+    torch.cuda.manual_seed_all(seed)
+
+
+def set_deterministic():
+    if torch.cuda.is_available():
+        torch.backends.cudnn.benchmark = False
+        torch.backends.cudnn.deterministic = True
+
+    if torch.__version__ <= Version("1.7"):
+        torch.set_deterministic(True)
+    else:
+        torch.use_deterministic_algorithms(True)
+
+
+def compute_accuracy(model, data_loader, device):
+
+    with torch.no_grad():
+
+        correct_pred, num_examples = 0, 0
+
+        for i, (features, targets) in enumerate(data_loader):
+
+            features = features.to(device)
+            targets = targets.float().to(device)
+
+            logits = model(features)
+            _, predicted_labels = torch.max(logits, 1)
+
+            num_examples += targets.size(0)
+            correct_pred += (predicted_labels == targets).sum()
+    return correct_pred.float()/num_examples * 100
+
+

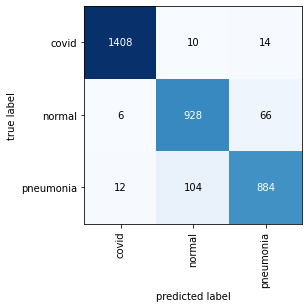

+def compute_confusion_matrix(model, data_loader, device):
+
+    all_targets, all_predictions = [], []
+    with torch.no_grad():
+
+        for i, (features, targets) in enumerate(data_loader):
+
+            features = features.to(device)
+            targets = targets
+            logits = model(features)
+            _, predicted_labels = torch.max(logits, 1)
+            all_targets.extend(targets.to('cpu'))
+            all_predictions.extend(predicted_labels.to('cpu'))
+
+    all_predictions = all_predictions
+    all_predictions = np.array(all_predictions)
+    all_targets = np.array(all_targets)
+
+    class_labels = np.unique(np.concatenate((all_targets, all_predictions)))
+    if class_labels.shape[0] == 1:
+        if class_labels[0] != 0:
+            class_labels = np.array([0, class_labels[0]])
+        else:
+            class_labels = np.array([class_labels[0], 1])
+    n_labels = class_labels.shape[0]
+    lst = []
+    z = list(zip(all_targets, all_predictions))
+    for combi in product(class_labels, repeat=2):
+        lst.append(z.count(combi))
+    mat = np.asarray(lst)[:, None].reshape(n_labels, n_labels)
+    return mat
\ No newline at end of file

helper_plotting.py

+# imports from installed libraries
+import os
+import matplotlib.pyplot as plt
+import numpy as np
+import torch
+
+

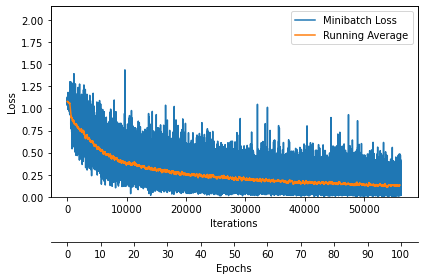

+def plot_training_loss(minibatch_loss_list, num_epochs, iter_per_epoch,
+                       results_dir=None, averaging_iterations=100):
+
+    plt.figure()
+    ax1 = plt.subplot(1, 1, 1)
+    ax1.plot(range(len(minibatch_loss_list)),
+             (minibatch_loss_list), label='Minibatch Loss')
+
+    if len(minibatch_loss_list) > 1000:
+        ax1.set_ylim([
+            0, np.max(minibatch_loss_list[1000:])*1.5
+            ])
+    ax1.set_xlabel('Iterations')
+    ax1.set_ylabel('Loss')
+
+    ax1.plot(np.convolve(minibatch_loss_list,
+                         np.ones(averaging_iterations,)/averaging_iterations,
+                         mode='valid'),
+             label='Running Average')
+    ax1.legend()
+
+    ###################
+    # Set scond x-axis
+    ax2 = ax1.twiny()
+    newlabel = list(range(num_epochs+1))
+
+    newpos = [e*iter_per_epoch for e in newlabel]
+
+    ax2.set_xticks(newpos[::10])
+    ax2.set_xticklabels(newlabel[::10])
+
+    ax2.xaxis.set_ticks_position('bottom')
+    ax2.xaxis.set_label_position('bottom')
+    ax2.spines['bottom'].set_position(('outward', 45))
+    ax2.set_xlabel('Epochs')
+    ax2.set_xlim(ax1.get_xlim())
+    ###################
+
+    plt.tight_layout()
+
+    if results_dir is not None:
+        image_path = os.path.join(results_dir, 'plot_training_loss.pdf')
+        plt.savefig(image_path)
+
+

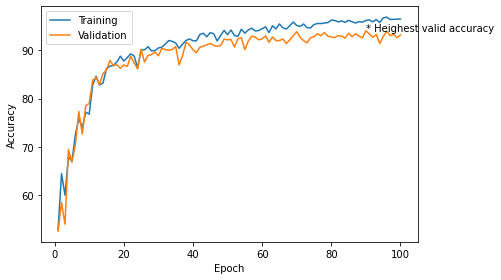

+def plot_accuracy(train_acc_list, valid_acc_list, results_dir):
+
+    num_epochs = len(train_acc_list)
+
+    plt.plot(np.arange(1, num_epochs+1),
+             train_acc_list, label='Training')
+    plt.plot(np.arange(1, num_epochs+1),
+             valid_acc_list, label='Validation')
+
+    plt.xlabel('Epoch')
+    plt.ylabel('Accuracy')
+    plt.legend()
+
+    plt.tight_layout()
+
+    if results_dir is not None:
+        image_path = os.path.join(
+            results_dir, 'plot_acc_training_validation.pdf')
+        plt.savefig(image_path)
+
+

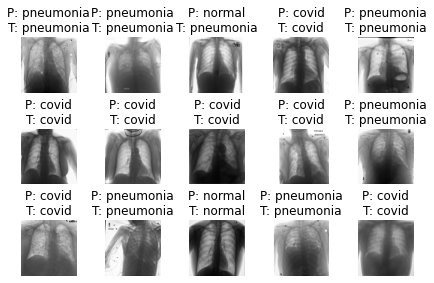

+def show_examples(model, data_loader, unnormalizer=None, class_dict=None):
+
+
+    for batch_idx, (features, targets) in enumerate(data_loader):
+
+        with torch.no_grad():
+            features = features
+            targets = targets
+            logits = model(features)
+            predictions = torch.argmax(logits, dim=1)
+        break
+
+    fig, axes = plt.subplots(nrows=3, ncols=5,
+                             sharex=True, sharey=True)
+
+    if unnormalizer is not None:
+        for idx in range(features.shape[0]):
+            features[idx] = unnormalizer(features[idx])
+    nhwc_img = np.transpose(features, axes=(0, 2, 3, 1))
+
+    if nhwc_img.shape[-1] == 1:
+        nhw_img = np.squeeze(nhwc_img.numpy(), axis=3)
+
+        for idx, ax in enumerate(axes.ravel()):
+            ax.imshow(nhw_img[idx], cmap='binary')
+            if class_dict is not None:
+                ax.title.set_text(f'P: {class_dict[predictions[idx].item()]}'
+                                  f'\nT: {class_dict[targets[idx].item()]}')
+            else:
+                ax.title.set_text(f'P: {predictions[idx]} | T: {targets[idx]}')
+            ax.axison = False
+
+    else:
+
+        for idx, ax in enumerate(axes.ravel()):
+            ax.imshow(nhwc_img[idx])
+            if class_dict is not None:
+                ax.title.set_text(f'P: {class_dict[predictions[idx].item()]}'
+                                  f'\nT: {class_dict[targets[idx].item()]}')
+            else:
+                ax.title.set_text(f'P: {predictions[idx]} | T: {targets[idx]}')
+            ax.axison = False
+    plt.tight_layout()
+    plt.show()
+
+
+def plot_confusion_matrix(conf_mat,
+                          hide_spines=False,
+                          hide_ticks=False,
+                          figsize=None,
+                          cmap=None,
+                          colorbar=False,
+                          show_absolute=True,
+                          show_normed=False,
+                          class_names=None):
+
+    if not (show_absolute or show_normed):
+        raise AssertionError('Both show_absolute and show_normed are False')
+    if class_names is not None and len(class_names) != len(conf_mat):
+        raise AssertionError('len(class_names) should be equal to number of'
+                             'classes in the dataset')
+
+    total_samples = conf_mat.sum(axis=1)[:, np.newaxis]
+    normed_conf_mat = conf_mat.astype('float') / total_samples
+
+    fig, ax = plt.subplots(figsize=figsize)
+    ax.grid(False)
+    if cmap is None:
+        cmap = plt.cm.Blues
+
+    if figsize is None:
+        figsize = (len(conf_mat)*1.25, len(conf_mat)*1.25)
+
+    if show_normed:
+        matshow = ax.matshow(normed_conf_mat, cmap=cmap)
+    else:
+        matshow = ax.matshow(conf_mat, cmap=cmap)
+
+    if colorbar:
+        fig.colorbar(matshow)
+
+    for i in range(conf_mat.shape[0]):
+        for j in range(conf_mat.shape[1]):
+            cell_text = ""
+            if show_absolute:
+                cell_text += format(conf_mat[i, j], 'd')
+                if show_normed:
+                    cell_text += "\n" + '('
+                    cell_text += format(normed_conf_mat[i, j], '.2f') + ')'
+            else:
+                cell_text += format(normed_conf_mat[i, j], '.2f')
+            ax.text(x=j,
+                    y=i,
+                    s=cell_text,
+                    va='center',
+                    ha='center',
+                    color="white" if normed_conf_mat[i, j] > 0.5 else "black")
+
+    if class_names is not None:
+        tick_marks = np.arange(len(class_names))
+        plt.xticks(tick_marks, class_names, rotation=90)
+        plt.yticks(tick_marks, class_names)
+
+    if hide_spines:
+        ax.spines['right'].set_visible(False)
+        ax.spines['top'].set_visible(False)
+        ax.spines['left'].set_visible(False)
+        ax.spines['bottom'].set_visible(False)
+    ax.yaxis.set_ticks_position('left')
+    ax.xaxis.set_ticks_position('bottom')
+    if hide_ticks:
+        ax.axes.get_yaxis().set_ticks([])
+        ax.axes.get_xaxis().set_ticks([])
+
+    plt.xlabel('predicted label')
+    plt.ylabel('true label')
+    return fig, ax
\ No newline at end of file

helper_train.py

+import time
+import torch
+import numpy as np
+from tqdm import tqdm
+from helper_evaluation import compute_accuracy
+
+
+def train_model(model, num_epochs, train_loader,
+                valid_loader, optimizer,
+                device, logging_interval=50,
+                scheduler=None,
+                scheduler_on='valid_acc'):
+
+    start_time1 = time.time()
+    min_valid_loss = 0
+    minibatch_loss_list, train_acc_list, valid_acc_list = [], [], []
+
+    for epoch in range(num_epochs):
+        start_time = time.time()
+        model.train()
+        for batch_idx, (features, targets) in enumerate(tqdm(train_loader)):
+
+            features = features.to(device)
+            targets = targets.to(device)
+
+            # ## FORWARD AND BACK PROP
+            logits = model(features)
+            loss = torch.nn.functional.cross_entropy(logits, targets)
+            optimizer.zero_grad()
+
+            loss.backward()
+
+            # ## UPDATE MODEL PARAMETERS
+            optimizer.step()
+
+            # ## LOGGING
+            minibatch_loss_list.append(loss.item())
+            '''if not batch_idx % logging_interval:
+                print(f'Epoch: {epoch+1:03d}/{num_epochs:03d} '
+                      f'| Batch {batch_idx:04d}/{len(train_loader):04d} '
+                      f'| Loss: {loss:.4f}')'''
+
+        model.eval()
+        with torch.no_grad():  # save memory during inference
+            train_acc = compute_accuracy(model, train_loader, device=device)
+            valid_acc = compute_accuracy(model, valid_loader, device=device)
+            print(f'Epoch: {epoch+1:03d}/{num_epochs:03d} '
+                  f'| Train: {train_acc :.2f}% '
+                  f'| Validation: {valid_acc :.2f}%')
+            train_acc_list.append(train_acc.item())
+            valid_acc_list.append(valid_acc.item())
+            if min_valid_loss < valid_acc.item():
+            	print("Validation acc Increased(",min_valid_loss,"--->",valid_acc.item(),") \t Saving The Model")
+            	min_valid_loss = valid_acc.item()
+            	torch.save(model.state_dict(), '/home/user/research/AlexNet/Alexnet_model.pth')
+
+        elapsed = (time.time() - start_time)/60
+        print(f'Time elapsed: {elapsed:.2f} min')
+
+        '''if scheduler is not None:
+
+            if scheduler_on == 'valid_acc':
+                scheduler.step(valid_acc_list[-1])
+            elif scheduler_on == 'minibatch_loss':
+                scheduler.step(minibatch_loss_list[-1])
+            else:
+                raise ValueError(f'Invalid `scheduler_on` choice.')'''
+
+
+    elapsed = (time.time() - start_time1)/60
+    print(f'Total Training Time: {elapsed:.2f} min')
+
+    #test_acc = compute_accuracy(model, test_loader, device=device)
+    #print(f'Test accuracy {test_acc :.2f}%')
+
+    return minibatch_loss_list, train_acc_list, valid_acc_list

train_acc_list.txt

+52.89007568359375,64.47822570800781,59.98997497558594,67.95857238769531,66.99520874023438,72.55818939208984,75.86590576171875,74.03385925292969,77.20235443115234,76.79585266113281,82.84329986572266,84.62522888183594,82.83773040771484,83.24980163574219,86.21227264404297,86.74127960205078,86.8637924194336,87.59883880615234,88.80721282958984,87.78260040283203,88.49537658691406,89.27497100830078,88.85733032226562,86.39603424072266,90.07684326171875,90.12139129638672,90.76734161376953,89.90978240966797,89.94876861572266,90.4944839477539,90.65596771240234,91.31305694580078,92.04254150390625,91.86991119384766,91.53023529052734,90.42765808105469,91.29078674316406,92.05924987792969,92.37665557861328,91.98128509521484,91.9645767211914,93.2898941040039,93.54605102539062,92.8221435546875,93.6629867553711,93.45695495605469,91.9478759765625,93.07829284667969,94.14188385009766,93.25648498535156,94.21427154541016,93.0838623046875,92.91680145263672,94.37576293945312,93.56832885742188,94.2309799194336,94.58180236816406,94.03050994873047,94.10289764404297,94.4815673828125,94.8769302368164,93.68526458740234,95.09967803955078,94.44258880615234,95.47276306152344,94.69316864013672,94.4203109741211,95.11637878417969,95.86813354492188,95.14978790283203,94.96603393554688,95.46163177490234,94.69873809814453,94.65419006347656,95.36139678955078,95.56743621826172,95.55072784423828,95.66766357421875,95.75675964355469,96.2746353149414,96.2022476196289,95.89041137695312,96.10201263427734,95.8235855102539,96.21337890625,95.9349594116211,95.66210174560547,95.96279907226562,95.84586334228516,96.2022476196289,96.30804443359375,95.91825103759766,96.3860092163086,95.76789855957031,96.72012329101562,96.89274597167969,96.40271759033203,96.43612670898438,96.47510528564453,96.48067474365234,
\ No newline at end of file

valid_acc_list.txt

+52.56410217285156,58.508155822753906,53.991844177246094,69.46387481689453,66.84149169921875,70.42540740966797,77.33100891113281,72.66899871826172,78.55477905273438,79.02098083496094,83.7995376586914,84.38228607177734,82.92540740966797,85.2272720336914,85.92657470703125,87.93706512451172,86.82984161376953,87.03380584716797,86.30535888671875,86.97552490234375,86.68415069580078,88.75291442871094,87.41259002685547,86.15967559814453,90.20979309082031,87.58741760253906,88.95687866210938,89.10256958007812,89.68531799316406,88.86946105957031,90.41375732421875,90.18065643310547,90.00582885742188,90.18065643310547,90.8216781616211,87.0046615600586,88.89860534667969,91.72494506835938,91.11305236816406,90.15151977539062,89.51049041748047,90.64685821533203,90.87995147705078,91.14219665527344,91.43356323242188,91.02564239501953,90.8216781616211,91.02564239501953,92.33683013916016,92.1911392211914,92.24942016601562,90.70513153076172,92.39511108398438,92.59906768798828,90.15151977539062,91.92890167236328,92.94872283935547,92.74475860595703,92.1911392211914,92.39511108398438,93.00698852539062,91.66667175292969,92.77389526367188,92.01631927490234,92.01631927490234,92.365966796875,91.40443420410156,92.1911392211914,93.0361328125,93.85198211669922,92.71562194824219,92.01631927490234,91.55011749267578,92.62820434570312,92.83216857910156,93.44405364990234,93.0361328125,93.67715454101562,92.94872283935547,92.77389526367188,92.6573486328125,93.06526947021484,92.94872283935547,92.5407943725586,93.56060791015625,92.83216857910156,93.44405364990234,92.94872283935547,92.56993103027344,94.05594635009766,93.38578796386719,92.71562194824219,93.29837036132812,91.43356323242188,92.83216857910156,93.96853637695312,93.06526947021484,93.32750701904297,92.62820434570312,93.2109603881836,
